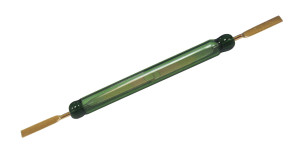

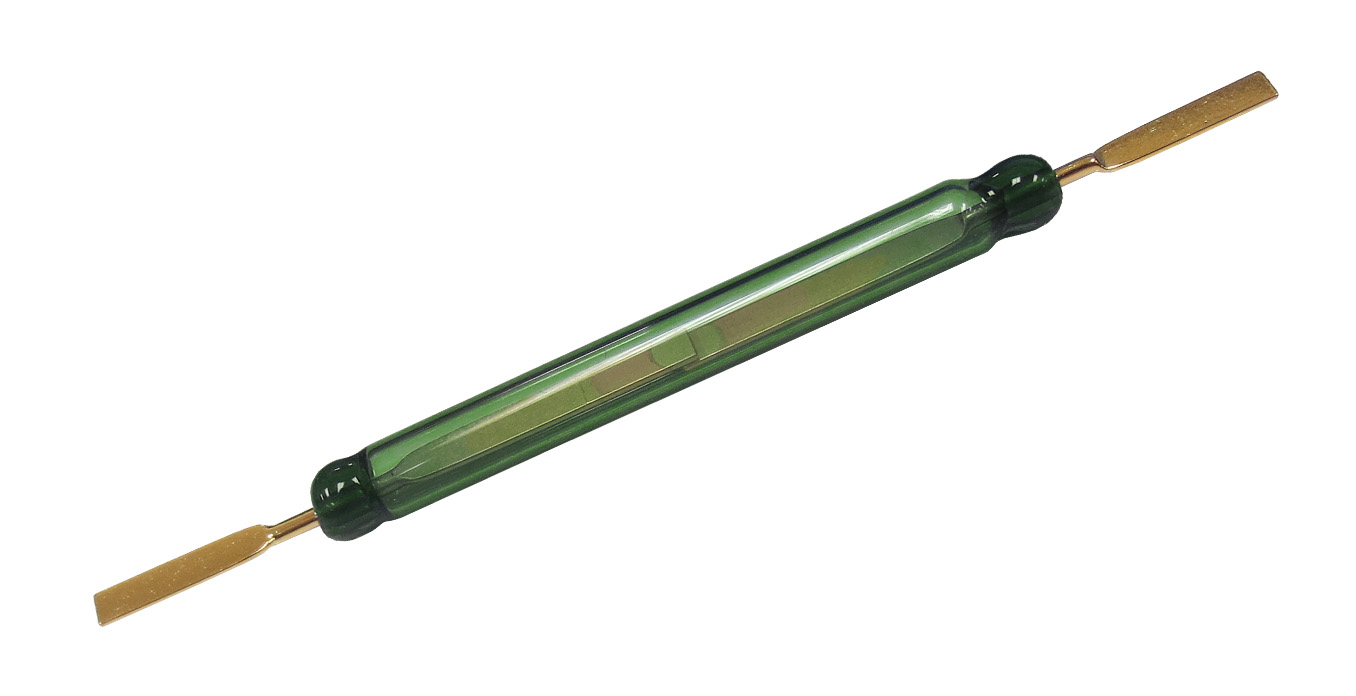

GC 1513

GC 1513

Categories: Reed Switches, Reed Switches Tags: reed switch, form a, comus group, stg, gunther, gunther comus, reed switches, gc switches, gc, GC1513

Description
Additional information

Product Description

Specifications

Contact Form: A
Switching Capacity: 120 W/VA Max.
Switching Voltage: 1500 Vac/dc Max.
Switching Current: 3.0 A Max.
Glass Length: 2.047in (52.0mm)
Glass Diameter: 0.213in (5.4mm)

Supporting Files

GC 1513 Datasheet

More Information Form

Please fill out the form below to access this file.

Name*
Company*
Email*
Country*
Phone
This field is for validation purposes and should be left unchanged.

Additional information

Breakdown Voltage	> 500 VDC
Customization	Straight Lead
Contact Form	A
Switching Power	above 60 Watt
Glass Length	52 mm
